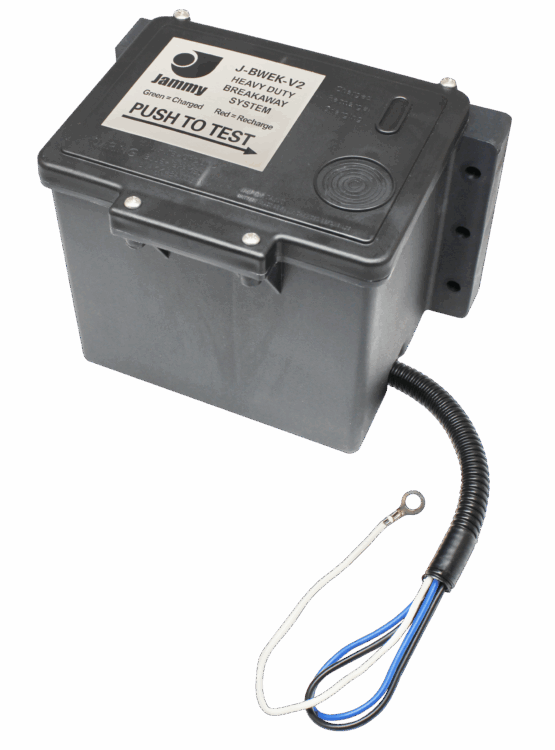

Top Load Side Mount LED Breakaway System. Heavy duty plastic battery box has dual use as junction box with wiring through bottom/right side. Top loading lid is secured with fasteners and features LED Charge Indicator Lights with Test Button. Silicon potted circuitry includes built in charging circuit. Prewired with generous 12″ Leads and ring terminal on ground wire. Kit includes J-ELEC Breakaway Switch & 12 Volt/5 Amp Battery.
Mount using up 6 holes in rear flange spaced 1.25″ apart on 5-7/8″ Centers. Intended for use with sheet metal or self drilling screws.
Breakaway Wiring Diagram
2 – 6 screws
